Air-cooled laser systems

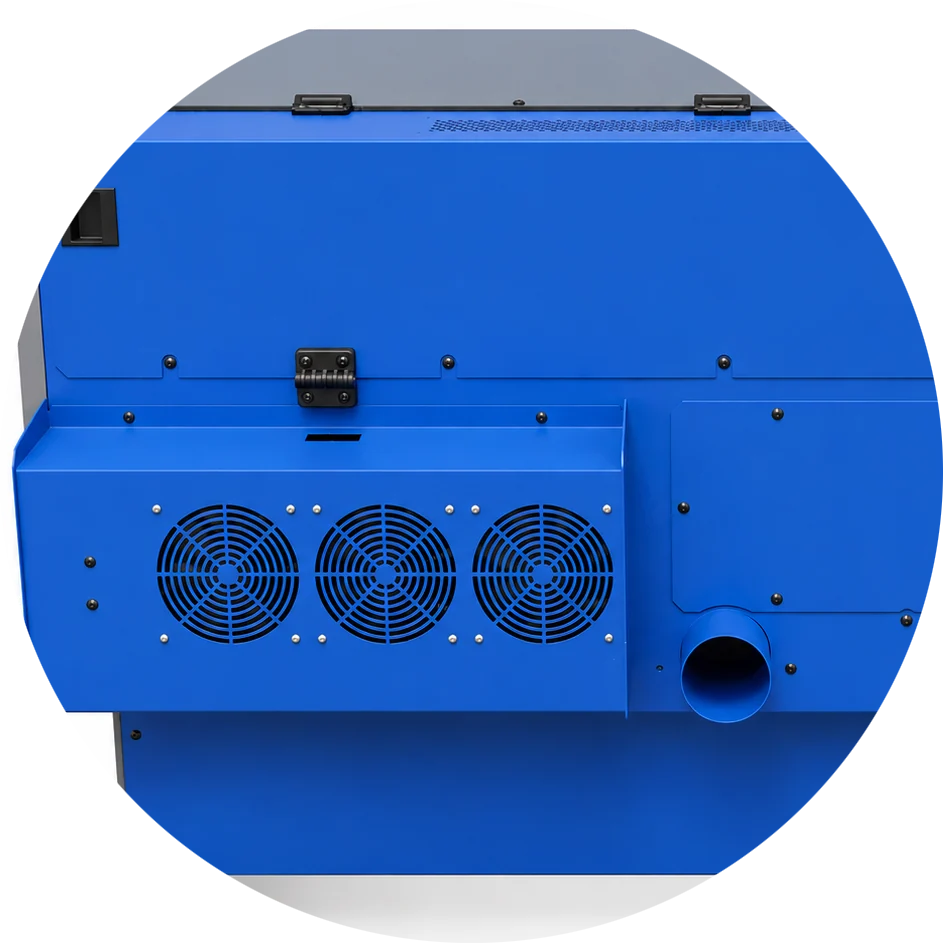

Air cooling is standard across Atom, Solo and Solo Plus.
SPECIALISED LASER SYSTEMS
From first idea
to finished piece.
UK-designed, engineered and manufactured laser systems. Explore three machine formats and dedicated fume extraction from the team behind Forma2D.
For education. For industry. For your next project.
Designed in the UKEngineered in the UKManufactured in the UK
FIND YOUR FIT
A system for your space.
Start with your working area, then explore the power options and extraction for your setup.
AT A GLANCE
Three formats. One approach.
| Specification | Atom ↗ | Solo ↗ | Solo Plus ↗ |
|---|---|---|---|
| Format | Desktop laser | Small platform laser | Larger platform laser |
| Working area | 600 × 400 mm | 600 × 320 mm | 810 × 460 mm |
| Laser power | 45 W standard | 35–60 W options | 35–90 W options |
| Cooling | Air cooled | Air cooled | Air cooled |
| Cutting table | Honeycomb | Honeycomb | Honeycomb |
| Air-Assist | Included | Included | Included |
| File workflow | Direct file import | Direct file import | Direct file import |
Working area is the usable cutting area, rather than the overall machine dimensions. We’ll confirm the configuration, materials and installation requirements with your quotation.

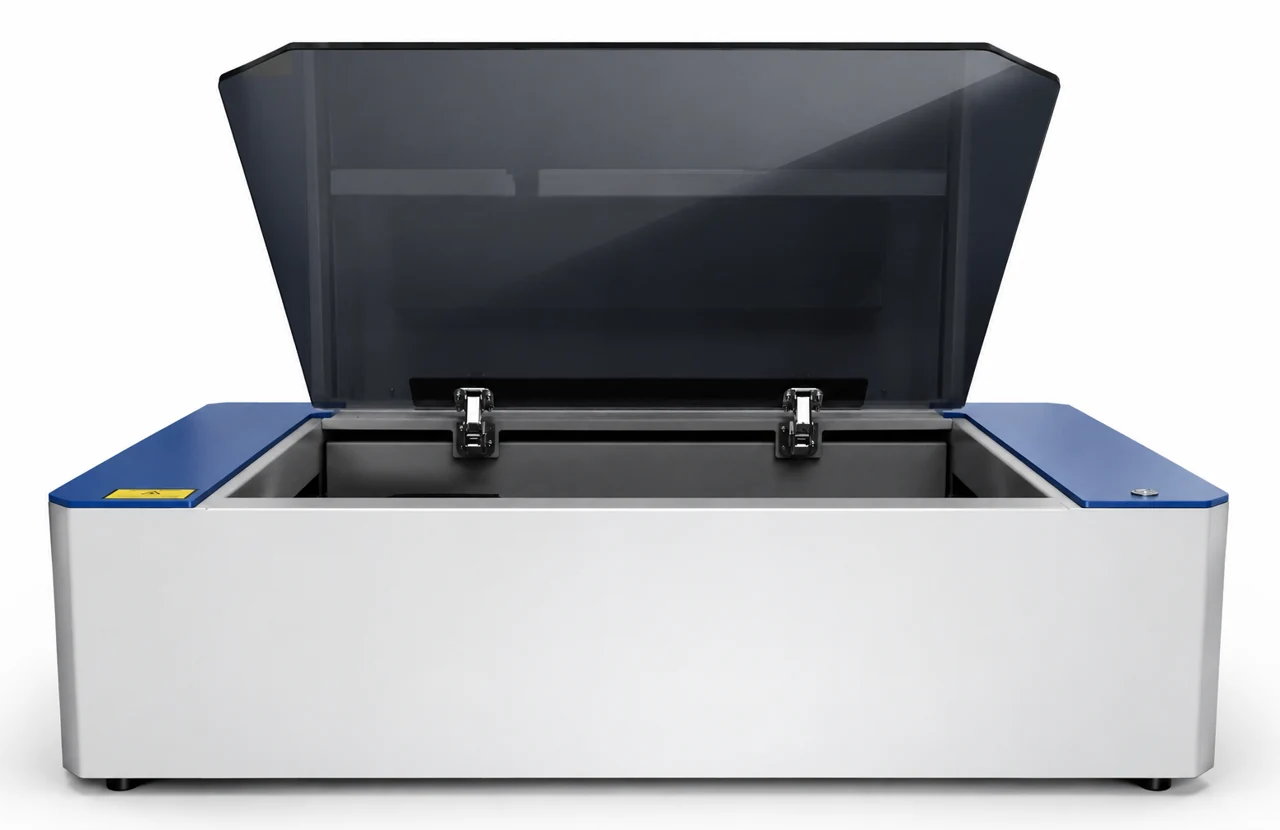

01 / DESKTOP LASER
AtomBig possibilities. Desktop format.
A compact desktop laser for classrooms and workshops. Atom combines a 600 × 400 mm working area with 45 W of laser power, air cooling and a honeycomb cutting table.
- Working area
- 600 × 400mm
- Laser power
- 45 Wstandard
- 45 W laser power as standard
- Air cooling and Air-Assist
- Honeycomb cutting table
- Optional autofocus and red alignment dot

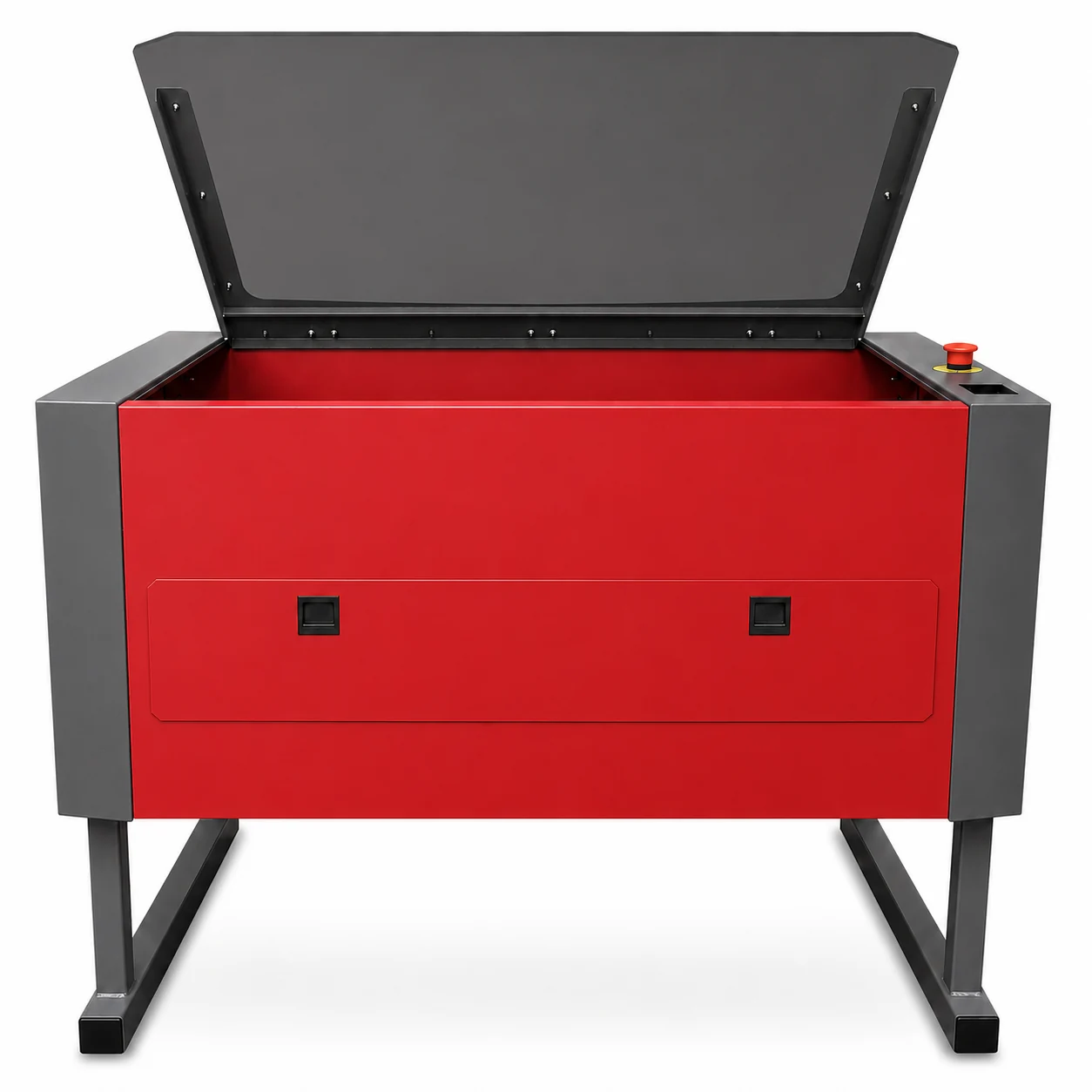

02 / SMALL PLATFORM LASER
SoloA dedicated place to make.
A compact platform system with a 600 × 320 mm working area. Choose from 35–60 W laser power options to suit the projects you want to develop, with air cooling, Air-Assist and a honeycomb cutting table.
- Working area
- 600 × 320mm
- Laser power
- 35–60 Woptions
- 35–60 W laser power options
- Air cooling and Air-Assist
- Red dot pointer
- Job time estimator

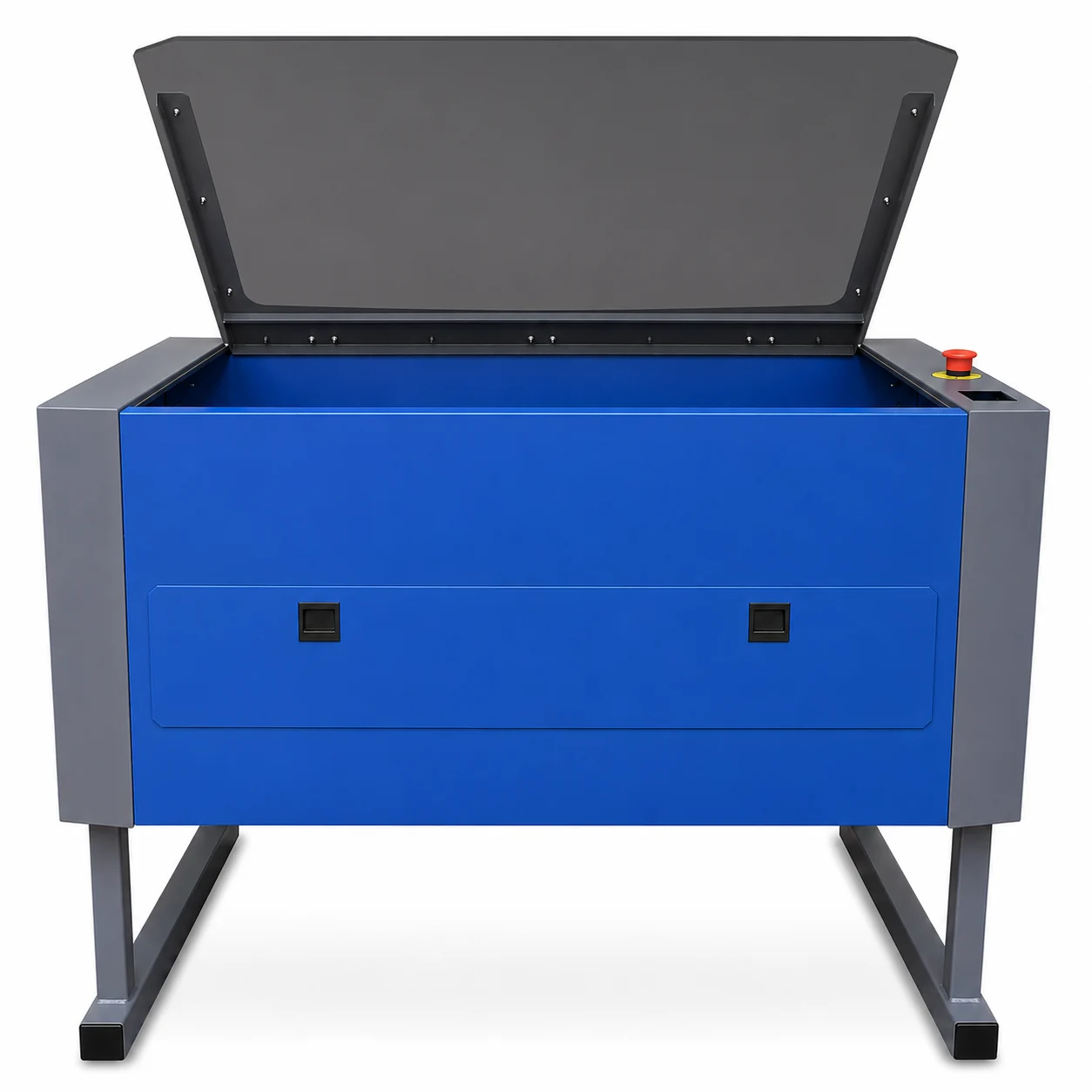

03 / LARGER PLATFORM LASER
Solo PlusMore room for the next idea.
A larger platform system for designs that need more space. Solo Plus pairs an 810 × 460 mm working area with 35–90 W laser power options, keeping the same air-cooled approach as the rest of the range.
- Working area
- 810 × 460mm
- Laser power
- 35–90 Woptions
- 35–90 W laser power options
- Air cooling and Air-Assist
- Honeycomb cutting table and red dot pointer
- Direct file import and materials database
BUILT AROUND THE JOB
The details that make a difference.
Practical features across the laser range, from setting up a file to preparing the cutting bed.
A considered workflow
Direct machine output, a materials database and job time estimation within the integrated Forma workflow.

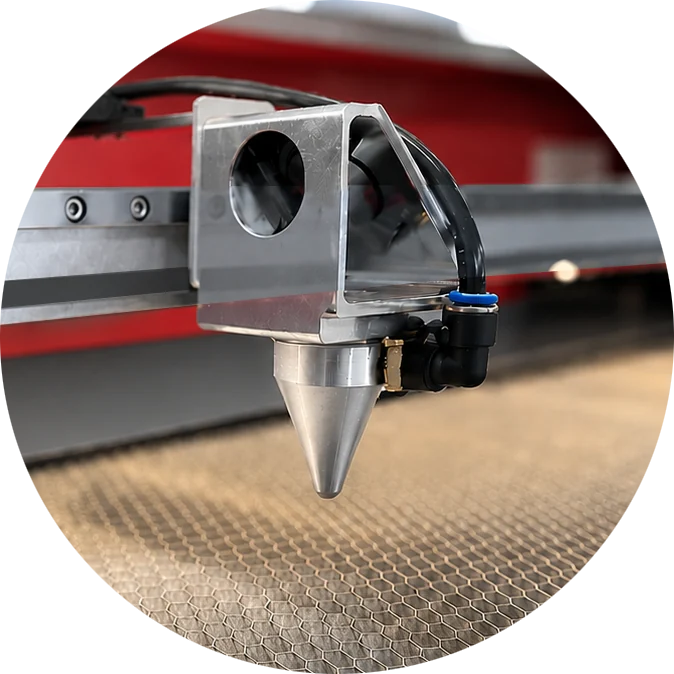

Ready for the cutting bed
Honeycomb support and Air-Assist are included across the three laser systems.

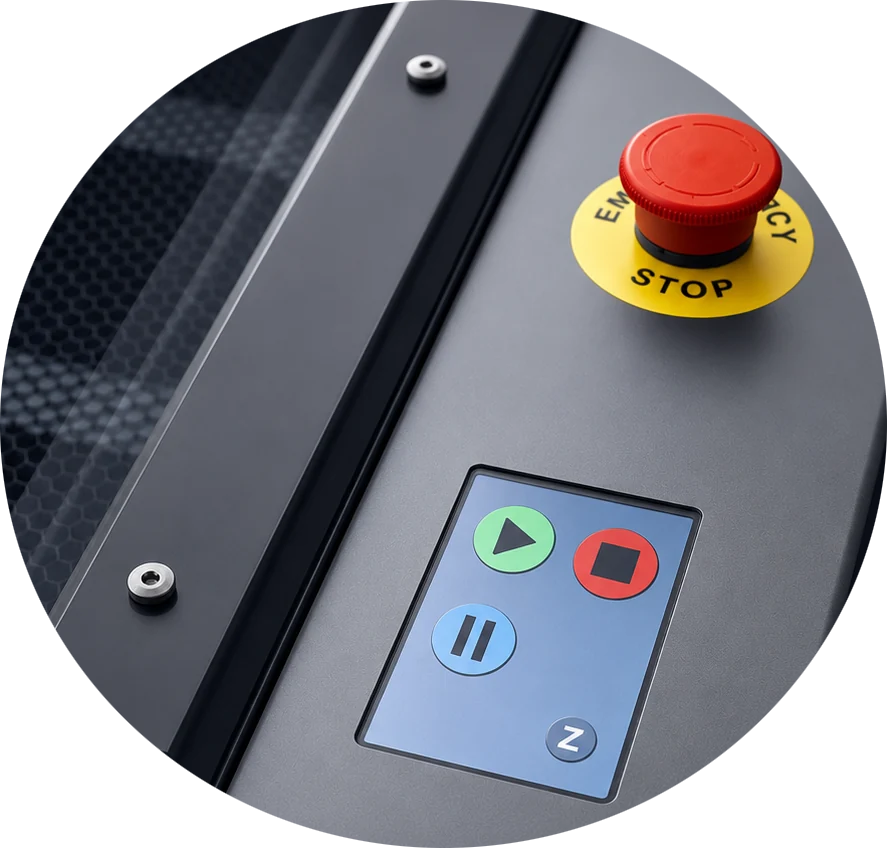

Detail images show features of the Solo platform range. Machine controls and appearance vary by model.

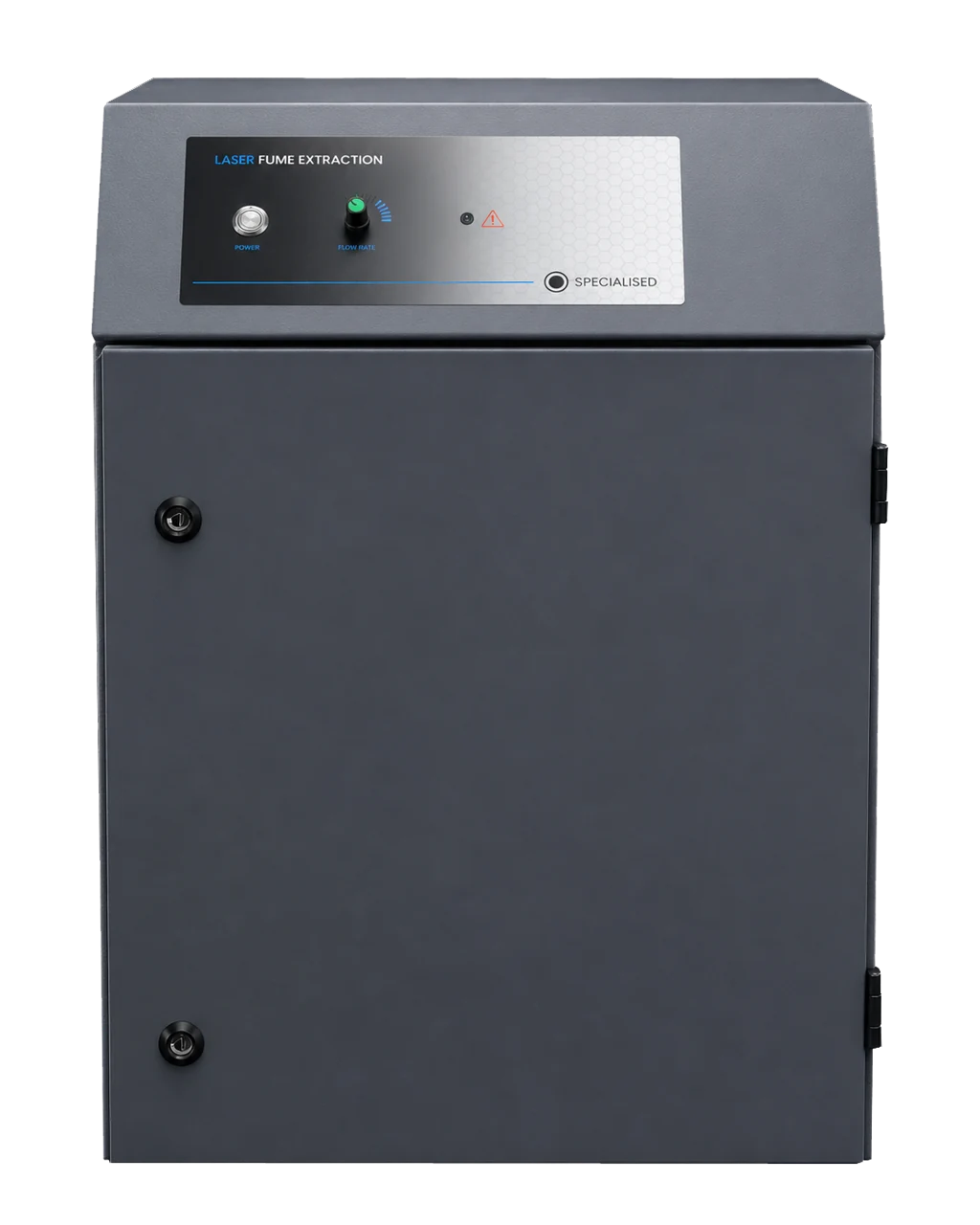

04 / LASER FUME EXTRACTION
Part of the complete setup.Specialised fume extraction
A dedicated extraction system for use with compatible laser-cutting materials. Three-stage filtration combines a pre-filter, HEPA filtration and a chemical filter, with individually replaceable elements.
- Filtration
- 3 stagesreplaceable elements
- Input connection
- 100mm spigot
- Brushless turbine with soft-start
- Manual flow control and flow alarm
- High-capacity filters with individual replacement
- Optional remote start/stop
Cabinet dimensions: 530 × 550 × 800 mm
We’ll help match the extraction setup to your machine, intended materials and workspace.
Enquire about extraction ↗View extraction data sheet PDF · 433 kB ↗INTEGRATED WITH FORMA2D
From Forma
straight to your laser.
Send designs directly from Forma2D to the Specialised Atom, Solo and Solo Plus laser range. Drawing, job preparation and machine output come together in one seamlessly integrated workflow.
Choose your machine and material, set up cutting and engraving operations, preview the job and send it to the laser. Keep editable project files and exchange formats available for the next idea.
DESIGN. PREPARE. SEND.
- 01
Draw
Create, measure and refine your artwork in Forma.
- 02
Prepare
Choose material settings and preview the cutting or engraving job.
- 03
Send
Send the design directly to your Specialised laser from Forma.
LET’S MAKE SOMETHING
Let’s find the right setup.
Tell us about your available space, intended materials and typical projects. We can discuss a laser system, extraction and Forma together.
